Telephone communicator module contacts

The “Address book” subsection of communicator programming allows you to define the contacts reached by the communications.

for Previdia Max and Previdia Ultra

The address book can contain a maximum of 15 contacts, for each contact you can define:

• Description – descriptive string that identifies the contact

• Type – indicates the contact type, depending on the protocol used for communication:

  • Voice – contact recipient of calls with voice messages

  • Ademco 10bps, Ademco 14bps, Franklin 20bps, Radionics 40bps, Scantronic 10bps, Contact-ID, TBR, Ademco Express – telemonitoring contacts with the relative protocol

  • SMS – contacts of this type will be the recipients of the SMS messages

• Channel – selectable between PSTN or GSM

for Previdia Compact and Previdia Micro

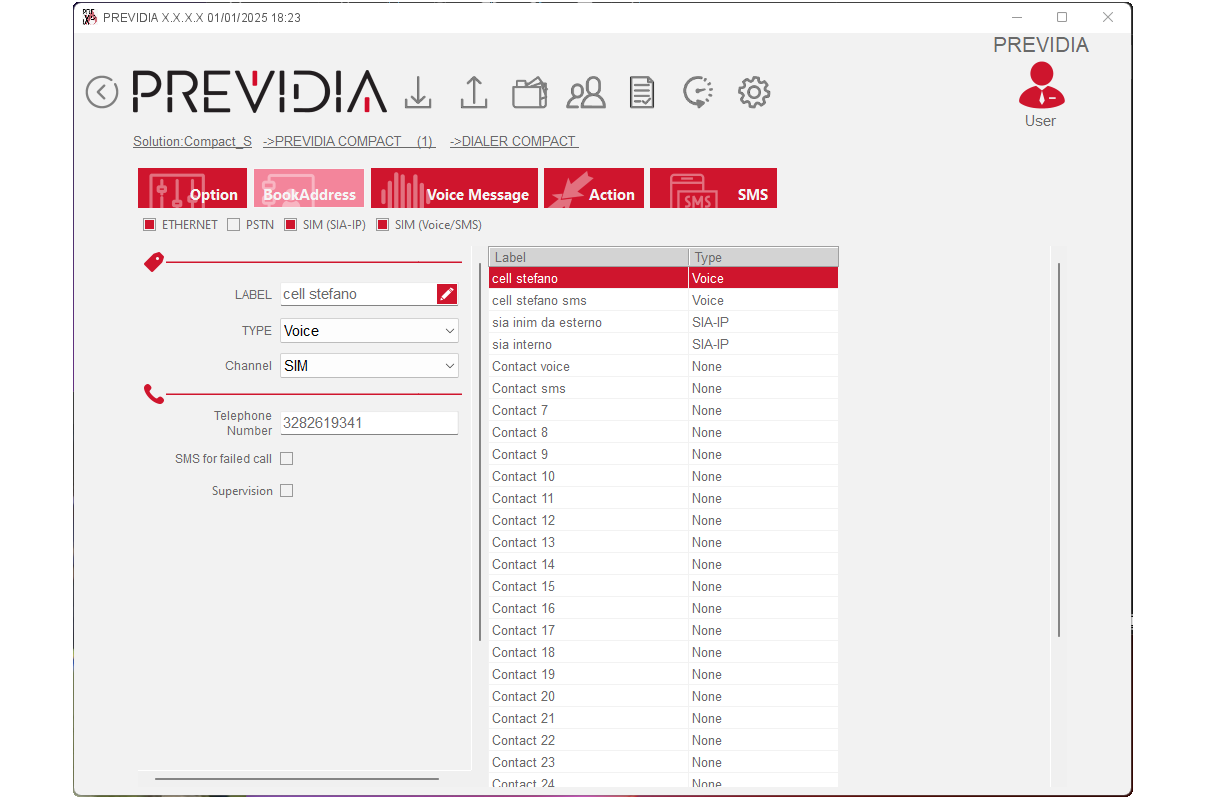

The address book can contain a maximum of 32 contacts, for each contact you can define:

• Description – descriptive string that identifies the contact

• Type – indicates the contact type, depending on the protocol used for communication:

  • SIA-IP, Contact ID – contacts recipient of communications sent via the relative protocols

  • Voice – contact recipient of calls with voice messages

  • SMS – contacts of this type will be the recipients of the SMS messages

• Channel – depending on the contact type, you can select the channel from among the 4 used by PREVIDIA-C-DIAL

The type of protocol and channel used determines the presence of additional parameters to be defined.
