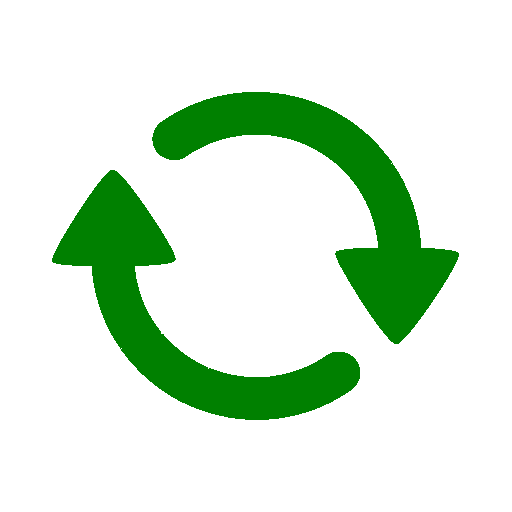

Button to update the data in the section in progress, after direct contact with the control panel.

Buttons to add or remove a device from the configuration.

When configuring a loop, a window opens where it is possible to select the type of device and the address of the “father”, to be more specific, the device it is connected to.

Buttons to load/save data from/to the solutions database.

Button to start a search for a device via the serial number.

Button to edit the respective parameter or part of the system.

Button to save to a .csv database file the current programming present in the section.

Button to open a window where you can select a “from-to” interval for the visualization of data in the section in progress.

Button to open a section where it is possible to filter the display of elements based on the following categories:

• Connection type
• Device type
• Module it is connected to

Button to provide a field where it is possible to select the zone the visualized devices belong to

Buttons to open a window where it is possible to select, add or change the groups of outputs involved in the function being programmed

Button to perform reverse selection with respect to the one in progress of the listed elements

Button to activate visualization of only the devices assigned to the element being programmed

• show assigned
• show unassigned
• show all

Button to delete unconfigured elements from the visualization

Buttons to move through the pages of listed elements

Button to clear the settings and assignments of the selected element

Button to access the section for viewing and managing the system or devices in real time (“Real time”)

Button to select all listed elements

Button to start a printout of the report or the list of the visualized elements
