Programming of the IFAMEVAC audio matrix module

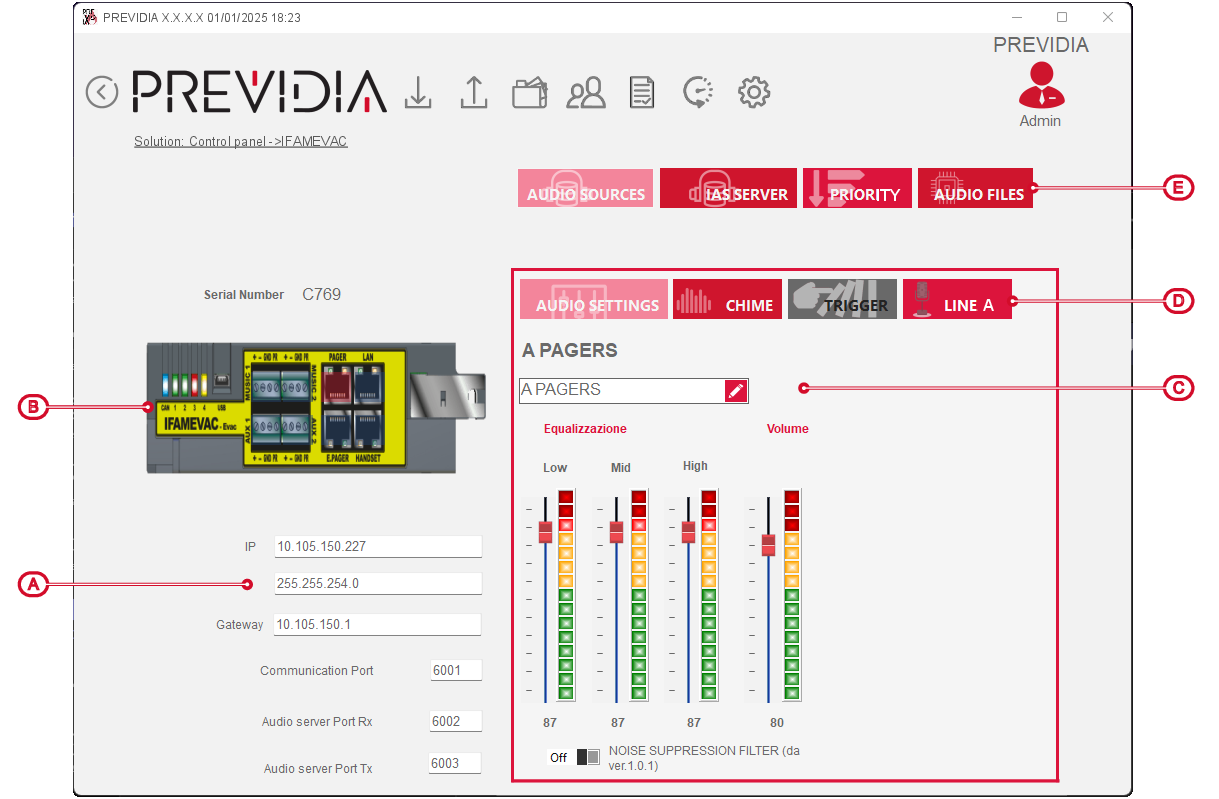

The programming section of the IFAMEVAC module, reachable from the Previdia Ultra control panel programming page, allows the configuration of:

[A]	IP parameters section of the module
[B]	Layout of the module where you can select the terminal
[C]	Section for the parameters of the selected terminal
[D]	Buttons for the selection of the subsections of the selected terminal
[E]	Buttons for the selection of the sections of the audio sources

The button bar at the top [E] allows access to the programming of files and input audio sources:

Audio sources		Configuration section of the audio sources connected to the IFAMEVAC module
IASS server		Section for access to IASS audio servers
Priority		Section with a list showing all audio sources and all audio files with their relative priorities
Audio files		Section for managing audio files in the IFAMEVAC module memory
SD card		Section for managing audio files stored on the SD card inserted in the module
Composed messages		Section for the definition of the composed messages
