CONVERTLED
Emergency lighting kit
Emergency lighting electronic driver for devices and LED modules
Compatible with all drivers with output from 6Vdc to 60Vdc and 2A maximum current
Compatible with LED modules from 6Vdc to 60Vdc.
Description | Product range | CONVERTLED |
Product type | Emergency kit | |
Versions | Standard, Self-Test, BUS Supervised | |
Type | Non-maintained (NM), Maintained (M) with driver | |
Technical specifications | ||
Installation | False ceiling/inside the device | |
Power supply | 220/230Vac, 50-60Hz | |
Battery | LiFePO4 3,2V | |
Insulation class | II | |
Colour | RAL9003 White | |
Output voltage | self-adaptive from 6V to 60V | |
| ||
Additional info | Dedicated terminal for inhibition function | |
Dedicated terminal for rest mode | ||
Protection grade IP | IP30 | |
Protection grade IK | IK07 | |
Operating temperature | da 0° a 40°C | |
Compliant to standards | EN 55015, EN 60598-1, EN 60598-2-22, | |
EN 61000-3-2, EN 61000-3-3, EN 61347-1, | ||
EN 61347-2-7, EN 61547, EN 62471 | ||

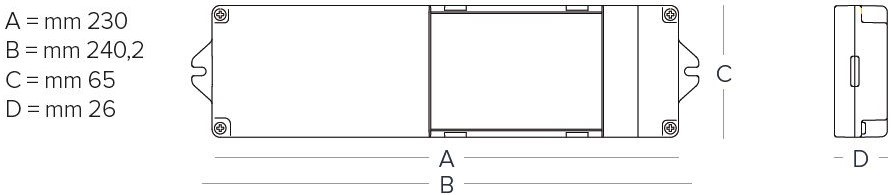

Dimensions (mm), package and warranty | ||
Dimensions (WxHxD) | 240,2x65x26 mm | |
Package contents: packs of 25 | ||
Warranty | 5 years |
|
