HP40
Recessed emergency lighting spotlight with an ultra-slim design

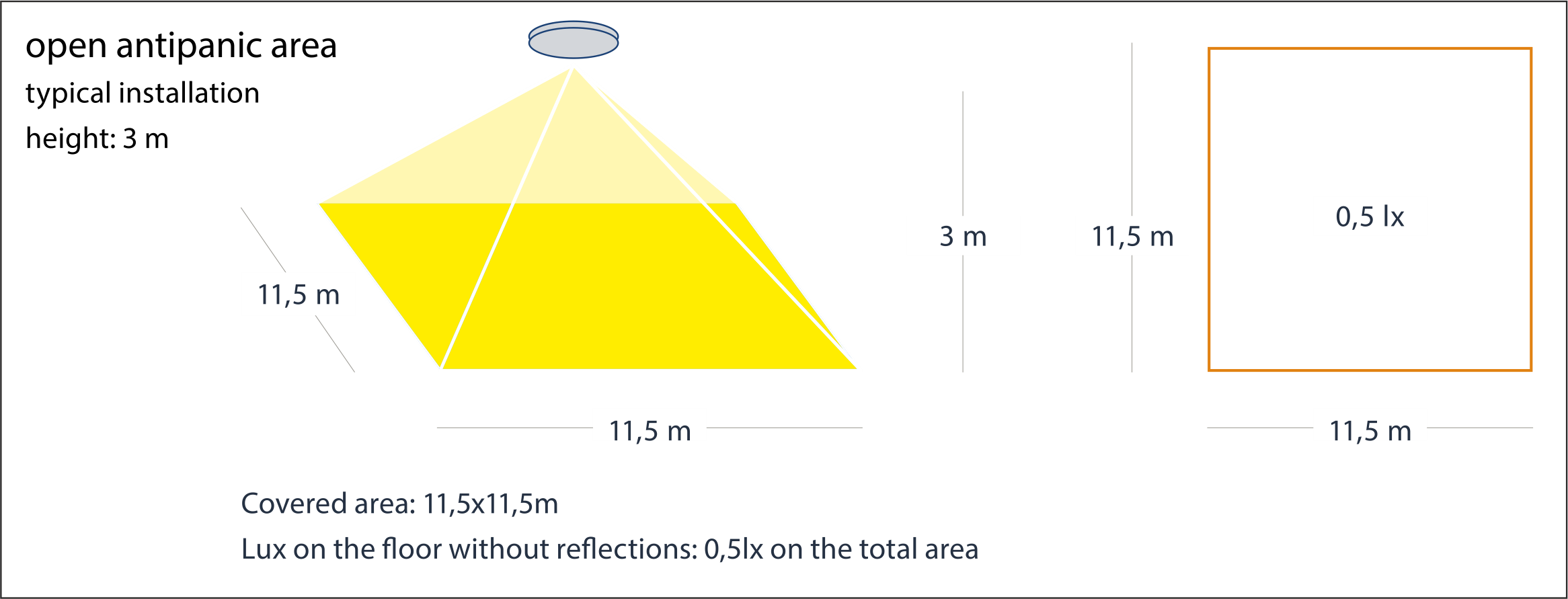

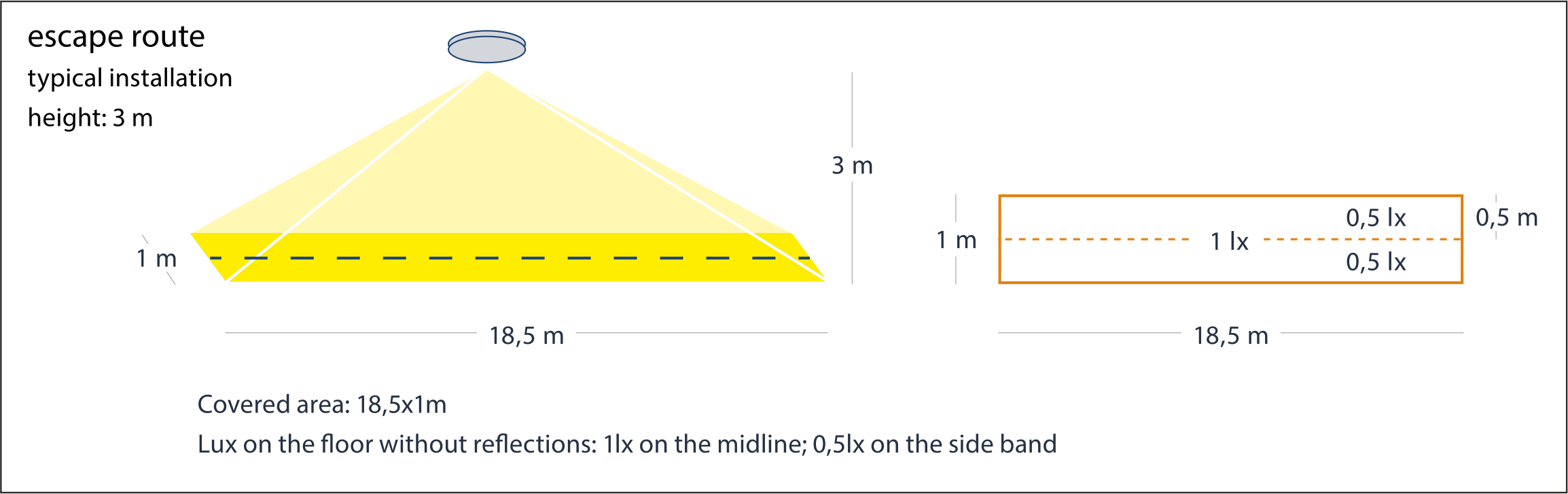

Equipped with specially designed optic lenses for exit routes and open (anti-panic) areas, complies with EN1838 standards.
Description |
Product range |
HARPER 40 |
Product type |
Emergency lamp |
|
Versions |
Self-Test, Bus-Supervised, Central-Battery |
|
Functioning type |
Non-Maintained |
|
Technical specifications |
Installation |
Recessed false ceiling |
Power supply |
220/230Vac, 50-60Hz |
|
Battery |
LiFePO4 3,2V |
|
Insulation class |
II |
|
Color |
RAL9003 white |
|
Light source |
LED |
|
Color temperature |
6000K |
|
Additional info |
Dedicated terminal for inhibition function |
|
Dedicated terminal for rest mode | ||
IP grade |
IP40 |
|
IK grade |
IK07 |
|
Operating temperature |
From 0° to 50°C |
|
Compliant to standards |
EN 60598-1, EN 60598-2-22 |
|
EN 1838 |
||
Dimensions (mm) |
Diameter |
100 |
order codes |
p/n |
N°Led |
Duration |
Battery LiFePO4 3,2V [Ah] |
Maintained |
med. fl. (lm) n/m |
med. fl. (lm) M |
IP Grade |
Recharge |
self-test |
HP40A A E 00 01 40 |
1 x 4W |
1 h |
1,5 |
N/M |
260 |
- |
IP40 |
6h |
HP40A A E 00 03 40 |
1 x 4W |
3 h |
3,3 |
N/M |
260 |
- |
IP40 |
12h |
|
bus supervised |
HP40A B E 00 01 40 |
1 x 4W |
1 h |
1,5 |
N/M |
260 |
- |
IP40 |
6h |
HP40A B E 00 03 40 |
1 x 4W |
3 h |
3,3 |
N/M |
260 |
- |
IP40 |
12h |
|
central-battery |
HP40A L A 00 00 40 |
1 x 4W |
- |
- |
- |
- |
260 |
IP40 |
- |
order codes |
p/n |
N°Led |
Duration |
Battery LiFePO4 3,2V [Ah] |
Maintained |
med. fl. (lm) n/m |
med. fl. (lm) M |
IP Grade |
Recharge |
self-test |
HP40C A E 00 01 40 |
1 x 4W |
1 h |
1,5 |
N/M |
260 |
- |
IP40 |
6h |
HP40C A E 00 03 40 |
1 x 4W |
3 h |
3,3 |
N/M |
260 |
- |
IP40 |
12h |
|
bus supervised |
HP40C B E 00 01 40 |
1 x 4W |
1 h |
1,5 |
N/M |
260 |
- |
IP40 |
6h |
HP40C B E 00 03 40 |
1 x 4W |
3 h |
3,3 |
N/M |
260 |
- |
IP40 |
12h |
|
central-battery |
HP40C L A 00 00 40 |
1 x 4W |
- |
- |
- |
- |
260 |
IP40 |
- |
