Programming the telephone communicator module

The programming of functions relating to communication via PSTN, GSM, GPRS channels of Previdia control panels is done through the Previdia/STUDIO sections of the appropriate modules.

for Previdia Max and Previdia Ultra

The control panel manages the telephone communication channels via the IFMDIAL module:

[A]	Buttons to select the subsections
[B]	Section for the communicator module parameters

for Previdia Compact and Previdia Micro

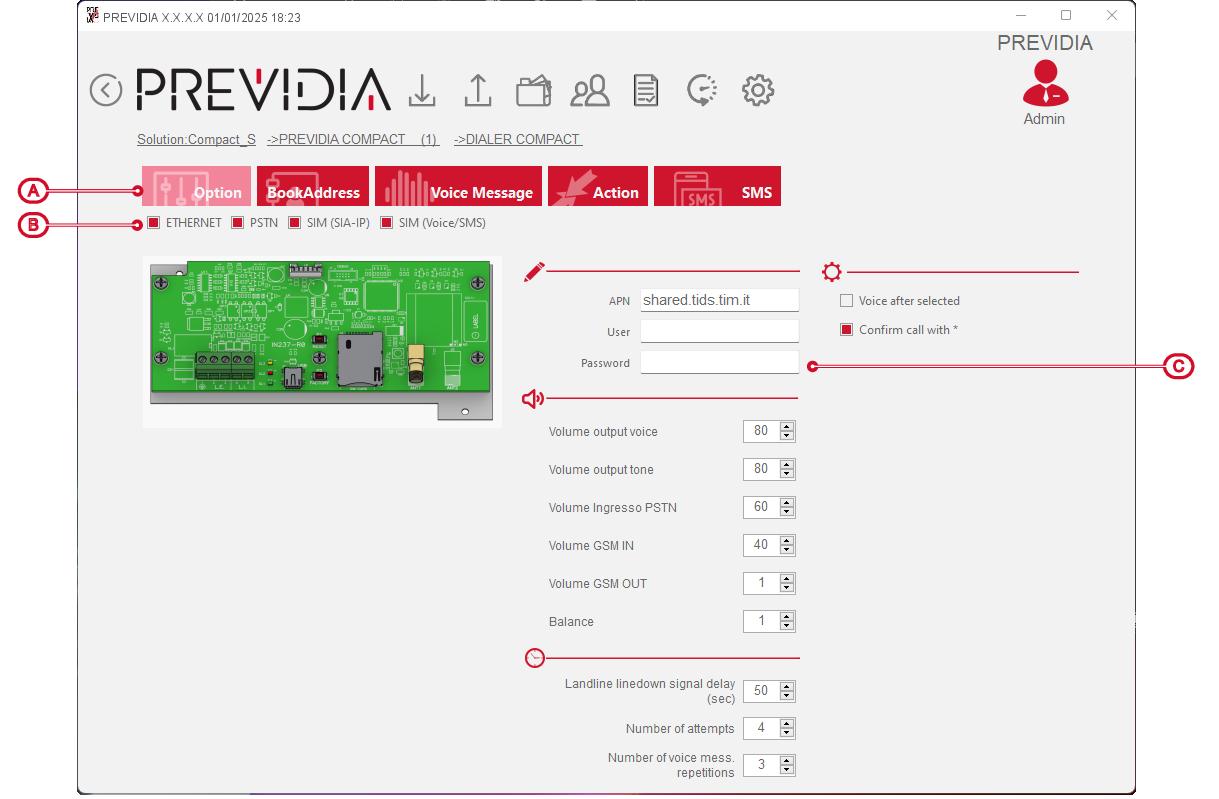

The control panel manages the telephone communication channels via the PREVIDIA-C-DIAL accessory card, the programming of which is accessible via the specific button, reachable from the control panel programming page.

[A]

Buttons to access the programming subsections

[B]

Selection of channels used by the module

Ethernet
PSTN
SIM card (with SIA-IP protocol)
SIM card (voice or SMS)

[C]

Board settings

The section that opens accesses the programming phase of the communicator parameters.

The top button bar [A], allows access to the programming of other functions relating to communication on telephone channels:

Options		Section for the communicator parameters
Address book		Section for the programming of the address book with the recipients of the telephone communications
Voice messages		Section for the programming of voice messages
Actions		Section for the programming of communications using SIA-IP protocol, Contact ID, voice messages and SMS
SMS		Section for the definition of SMS messages
