Programming the PREVIDIA-C-COM communicator module
|
|

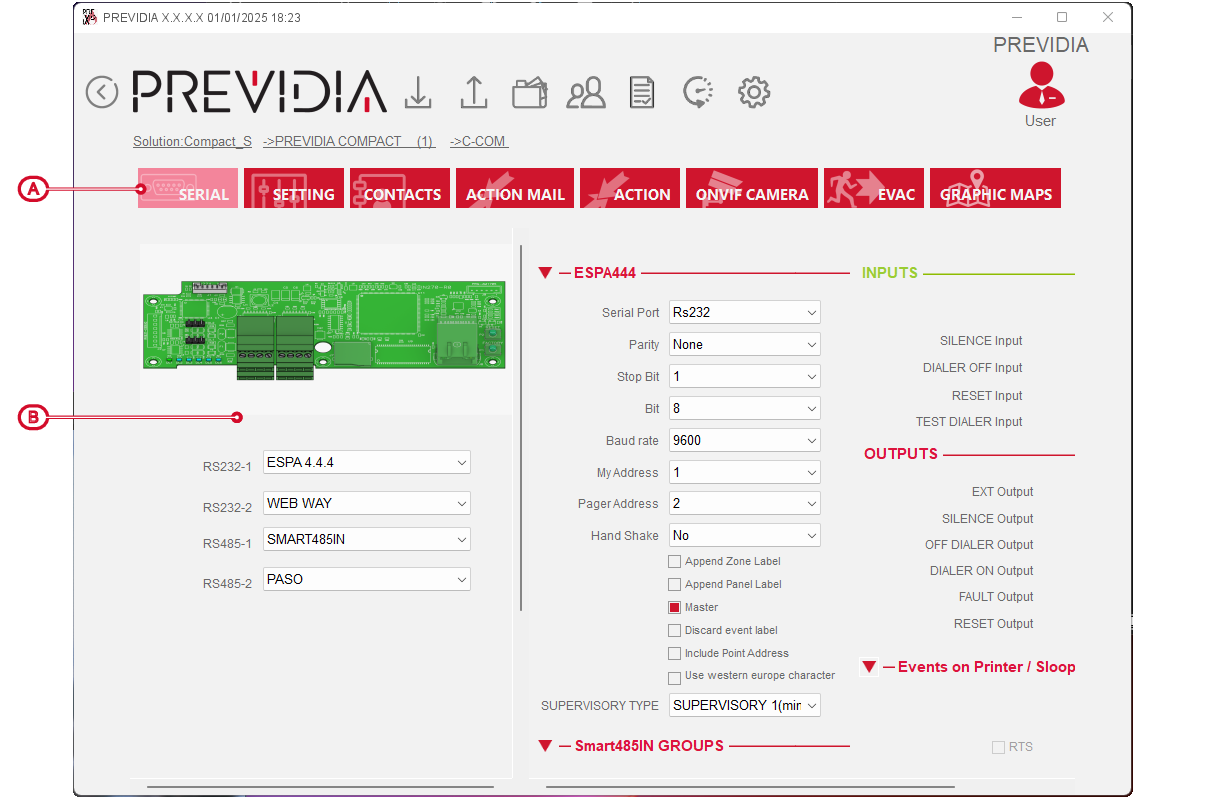

The section that opens immediately gives access to the programming of the serial channels with which the board is equipped.
The top button bar [A] allows access to the sections relating to other functions of the communicator:
|
Serial |
|
Section for programming the RS485 and RS232 serial channels |
|
LAN settings |
|
Section for the programming of the board LAN channel |
|
Contacts |
|
Section for the programming of the address book with recipients of communications via e-mail, web-way-one and ESPA 4.4.4 |
|
E-mail actions |
|
Section for the programming of email sending |
|
Actions |
|
Section for the programming of the sending of Web-way-one and ESPA 4.4.4 communications |
|
ONVIF Camera |
|
Section for defining the IP cameras with ONVIF protocol for use by the control panel |
|
BACnet |
|
Section for the programming of the BACnet points |
|
EVAC |
|
Section for the programming of voice evacuation systems |
|
Graphic maps |
|
Section for the programming of graphic maps accessible from Web-server |
